Used to secure Bollards on ZERO WASTE Foundations (60 mm) making bollards and surrounding foundations re-usable impact after impact, saving thousands over the life of a development.
Unit includes
- 2 x Impact Recovery Rings *
- Steel Resistance Core
- 650 mm Ground socket
- Self-locking Taper
- Cap
Tools required
Extra Heavy Duty Resistance Core available for 650 mm depth footings only
If you find bollards are being damaged too frequently (they are possibly being imapcted by trucks or utility vehicles) we suggest increasing the strength of the internal resistance core to an extra heavy duty core providing approximately 150% greater resistance against bending (please note this will result in considerable damage to passenger vehicles if impacted at high speed)
Size Rings required
If securing Stainless steel Bollard select 168 Rings/ If securing Steel select 165 Rings/ If securing Advanced Polymer select 150 Rings. We also suggest buying a replacement core as this is the only replaceable component if bollard is badly impacted.

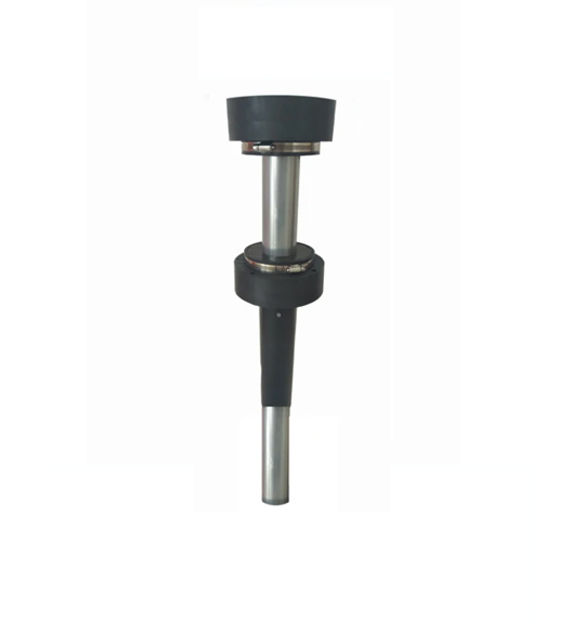

Impact Recovery System 650 mm Depth
Unless you incorporate some form of shock absorbing capability, the bollard and footing will need replacing every time it is badly impacted. Using the revolutionary Impact Recovery System you can put an end to costly maintenance by making bollards and foundations reusable even following severe impact.
INCLUDING:
-
PDF SPECIFICATIONS
-
TOOLS
-
INSTALLATION INSTRUCTIONS
-
DIRECTIONS FOR USE
-
SAFETY & ENVIRONMENT POLICY
-
VIDEO
-
VIDEO USING IRS
-
AS/NZS 3845.2 CERTIFICATION
-
