It's time to move from
repetition
to resilience
Impacts are inevitable, repeat repairs are not.
It is time to move from repetition to resilience. With hundreds of thousands of roadside items in our cities, our roads and pavements remain in a constant state of decline. It's time to move from repeatedly rebuilding pavements and start building long term success
SPECIFICATION 601
SIGNS
For signs facing oncoming traffic, 60.3 mm CHS 2.3 mm posts are to be used in conjunction with a fixing bracket that provides a flat surface of approximate 75 mm x 20 mm around the bolt fixing area to secure the sign to the post. The fixing bracket shall also restrain the sign from rotating around the post.
(ZERO CIVIL RE-USABLE BRACKETS)
SIGN SUPPORTS
601.26 GENERAL
For signs facing oncoming traffic, 60.3 mm CHS 2.3 mm posts are to be used
Sign support dimensions shall be in accordance with Drawing Nos 8720-0657, 0330- 1686, 0330-1687 and 0330-1688 and the post schedules shown on the sign drawings.
CHS Posts now Approved for use in all regions
Circular Hollow Section (CHS) signposts must be secured using an approved fixing device as specified in Annexure 601G (ZERO WASTE Foundations)
This application may typically be applied to the following signs:
-
R2-3(L or R) Keep Left/Keep Right
-
R2-5 (No U-Turn)
-
R2-15 (U-Turn Permitted)
-
MR-GT-15 (L or R) Cars Only
-

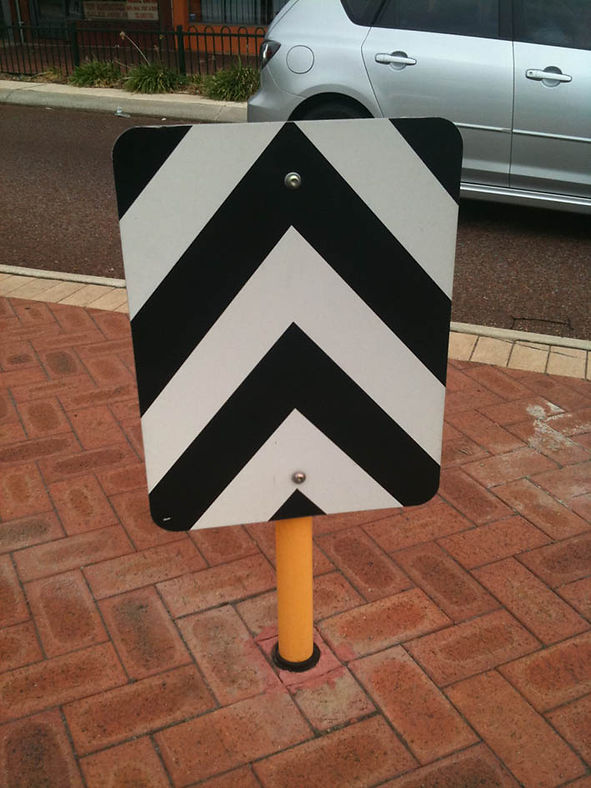

MR-HM-12 (Divisional Marker) or D4-2-2 (Bidirectional Hazard Marker)
> CLICK HERE TO VIEW SPECIFICATIONS 601 ONLINE
ZERO WASTE FOUNDATIONS
Approved for securing signage, bollards and grabrails in soil, asphalt or paved areas.
As specified in Annexure 601G (Smart Taper - ZERO WASTE Foundations)are approved for use in locations where signs are frequently hit and for all removable signs on High-Wide Load corridor routes.
SIGN SUPPORTS
601.26 GENERAL

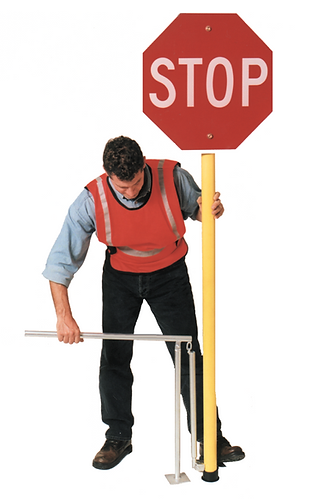

Removable Sign Posts are defined as sign posts which enables the posts to be removed and reinstated from their base with specially designed tools without damaging either the base or post, Removable sign posts shall be used, where specified, including all removable signs on High-Wide Load corridor routes.
“ Our selection is not based on price alone, we also took into consideration the safety & saving aspects. ZERO WASTE Foundations allow quick replacement of posts with no further effort required to the base, (providing a significant cost benefit in replacing the damaged sign post by re-using the existing footing ) and reduces risk of injury to employees by reducing time spent on traffic islands exposed to traffic.” MRWA
SPECIFICATION 609
BOLLARDS AND GRABRAILS
MRWA TRAFFIC BOLLARDS
Removable Bollards secured using ZERO WASTE Foundations . Bollards "automatically" lock into socket (no pins or padlocks) and can only be removed using tools provided (MRWA has tools)
Foundations remain in good condition year after year and damaged bollards are replaced quickly & efficiently from a standing position.
> CLICK HERE TO VIEW MRWA SPECIFICATION DRAWING
MRWA FIXED BOLLARDS
MRWA Fixed Bollards
Australian Made- quality you can trust
-
150 NB
-
165 OD
-
Aussie Made 5mm wall
-
Steel Pipe Bollards
-
Galvanised
-
Powder Coated to MRWA Spec
-
MRWA Striping
We can supply cheap imports if you do not care about quality- but much prefer to supply Australian Made of far superior quality.
ZERO WASTE GRABRAILS
Grab-rails can be secured using ZERO WASTE Foundations as a more resilient option to metal sockets.
Sockets can be installed when pouring concrete and grabrails installed in literally seconds.
Grabrails are installed 350 mm depth using ZERO WASTE Foundations (350 mm ground sockets)) MRWA has removal tools
Smart Urban products are now sold by ZERO CIVIL
Note: CHS and ZERO WASTE foundations can be used to secure signs
NOTE: AUSPOSTS IS NOW ZERO CIVIL
REMOVABLE 60 OD CHS REFER DRAWING ABOVE 200831
